1.What is Dante?

Dante digital audio transmission technology is an audio transmission technology based on a three-layer network, which provides a low-latency, high-precision and low-cost solution for point-to-point audio connections.

Dante technology can transmit high-precision constant signal and professional audio signal on Ethernet (100M or 1000M), and can perform complex routing. Compared with the traditional audio transmission technology, it inherits all the advantages of CobraNet and EtherSound, such as uncompressed digital audio signal, which ensures good sound quality; it solves the complicated wiring problem in traditional audio transmission and reduces the cost.


2.Dante Advantages

At the same time, it has its own unique advantages:

1) Shorter latency, the Dante system can automatically adjust the available network bandwidth to minimize latency.

2) The IEEE1588 precision clock protocol is used for clock synchronization.

3) The Zeroconf (Zero Configuration Networking) protocol is adopted, and the automatic configuration server is used to automatically check interface devices, identification labels, and partition IP addresses, etc., without starting high-level DNS or DHCP services, and saving complicated manual network configuration.

4) High compatibility of the network. Dante technology can allow audio signals, control data and other irrelevant data streams to be shared in the same network without interference, and users can maximize the use of existing networks without rebuilding a dedicated network for the audio system.

5) Self-healing system. In order to avoid audio transmission interruption caused by accident, the Dante system can set multiple self-healing mechanisms, such as clock loss, network failure, etc.

6) The transmission mode of the audio channel can be unicast or multicast. Dante technology can be managed through IGMP (Internet Group Message Protocol), which can filter or block broadcast audio channels according to the needs of the receiving point, which makes the routing of multicast audio controllable.

7) All routing of Dante is done through Dante Controller software.

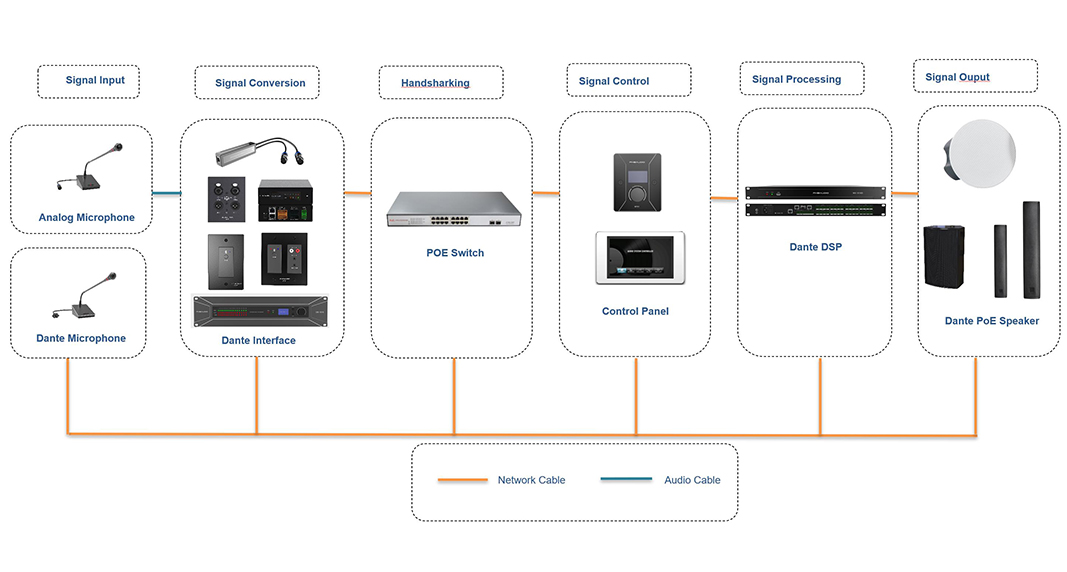

3.Our Dante products system introduction:

Our Dante products line including:
Dante DSP:8Channel,12Channel,16Channel,64channel
Dante IO:Dante Adapter (DI22,DO22.DU22),Dante Wall Plate,Dante Interface,Bluetooth Dante
Dante Microphone:Desktop microphone,Ceiling microphone
Dante Speaker:Dante ceiling Speaker,Dante Wall mounted Speaker
Dante DSP Amplifier
Dante Speaker Management processor
