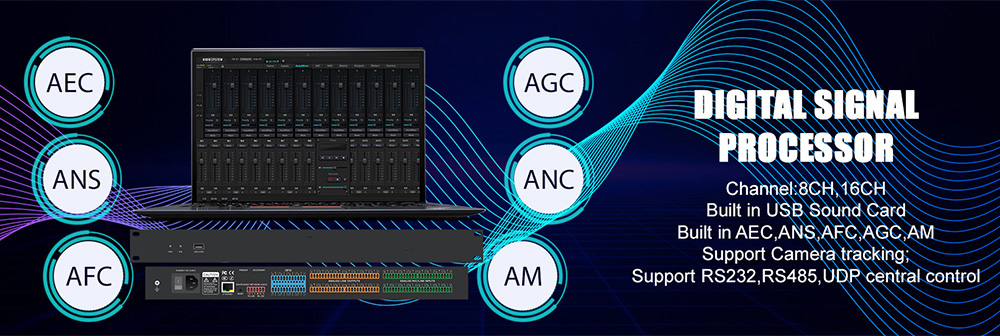

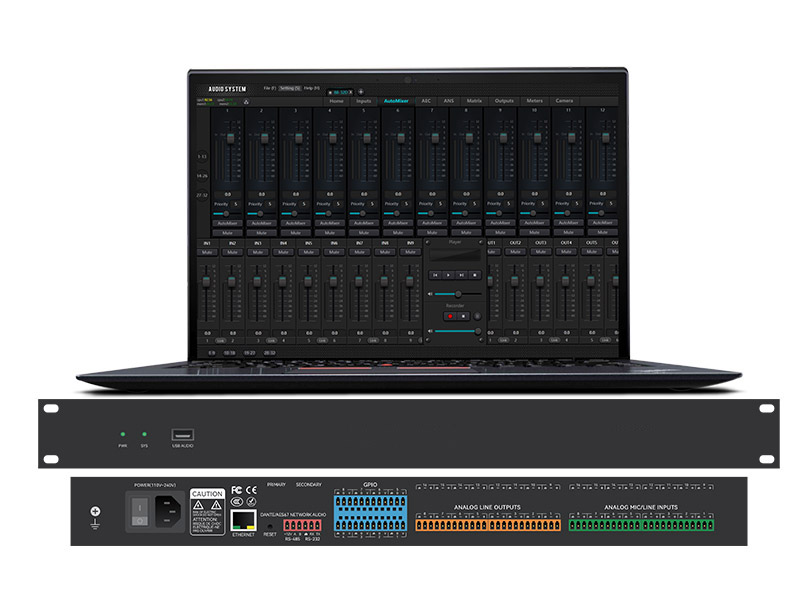

The MU-1616 digital audio processor is a freely designed audio processing and control system.It adopts advanced DSP processing technology, has a new automatic mixing, Feedback elimination,Echo cancellation,Noise cancellation etc, targeted to solve various practical problems in the application scene..

1.Professional audio processor support 16 way analog input and output a，It provides low delay and high fidelity audio signal transmission under the support of high broadband network.
2.Processor :ADI SHARC 21489@450 MHz SIMD;
3.DSP processing capacity :400 MIPS, 1.6 GFLOPS;
4.Provide 8 devices for online operation at the same time;
5.Built-in one in one out USB sound card, support music playback, recording and soft video conference (such as: ZOOM, Tencent conference, Dingding conference, etc.);
6.Bus type AEC, tail time: 512ms, convergence rate: 60dB/S, echo cancellation amplitude: 60dB;
7.Independent channel AFC (feedback suppression), using notch algorithm, sound transmission gain increase amplitude: 10dB;
8.Noise suppression (ANS), signal-to-noise ratio increased by 18dB
9.Dodge device (Ducker);
10.Noise gain compensator (ANC)
11.Gain sharing automatic mixing (AMC), Gate Mixer;
12.12 period of British equilibrium parameter, provides 5 kinds of filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass;
13.Provides customized operation interfaces for terminal users. A maximum of 30 devices can be managed on one interface.
14.Support camera tracking;
15.With 8-way GPIO;
16.With the central control function, support RS232, RS485, UDP three control modes, can be the system power, signal switching, environmental control, audio control and other overall control, to achieve a key to open the system required functions.1U Whole aluminum chassis

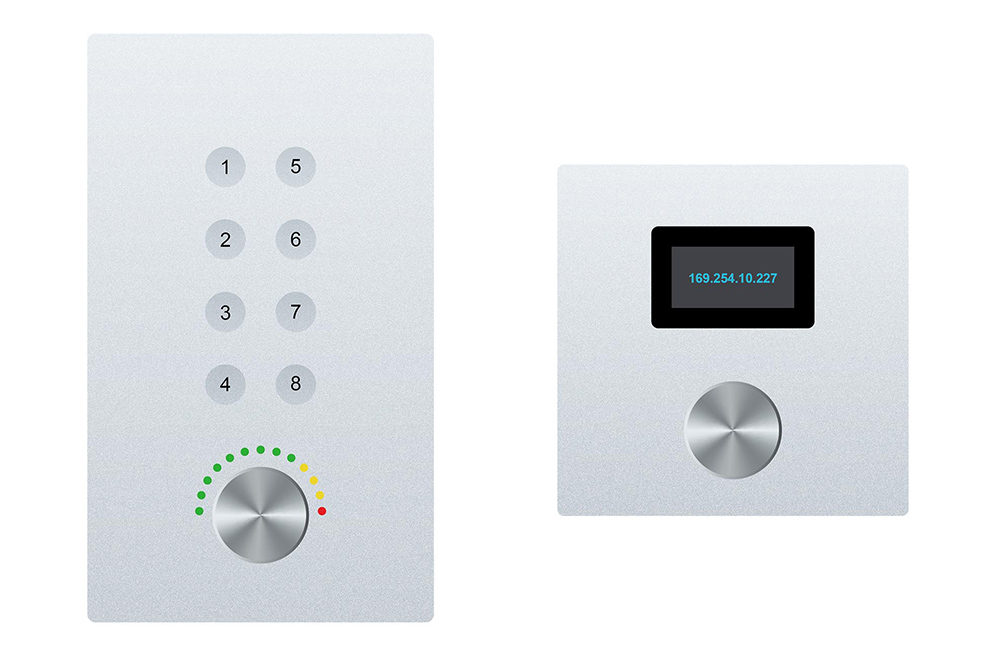

Digital Audio Processor System can provide users with more intuitive operation experience and more intelligent audio processing experience, client support Windows system, fully compatible with IE, CHROME, FIREFOX.It also Support for open architecture,and can be use together with the control panel,
