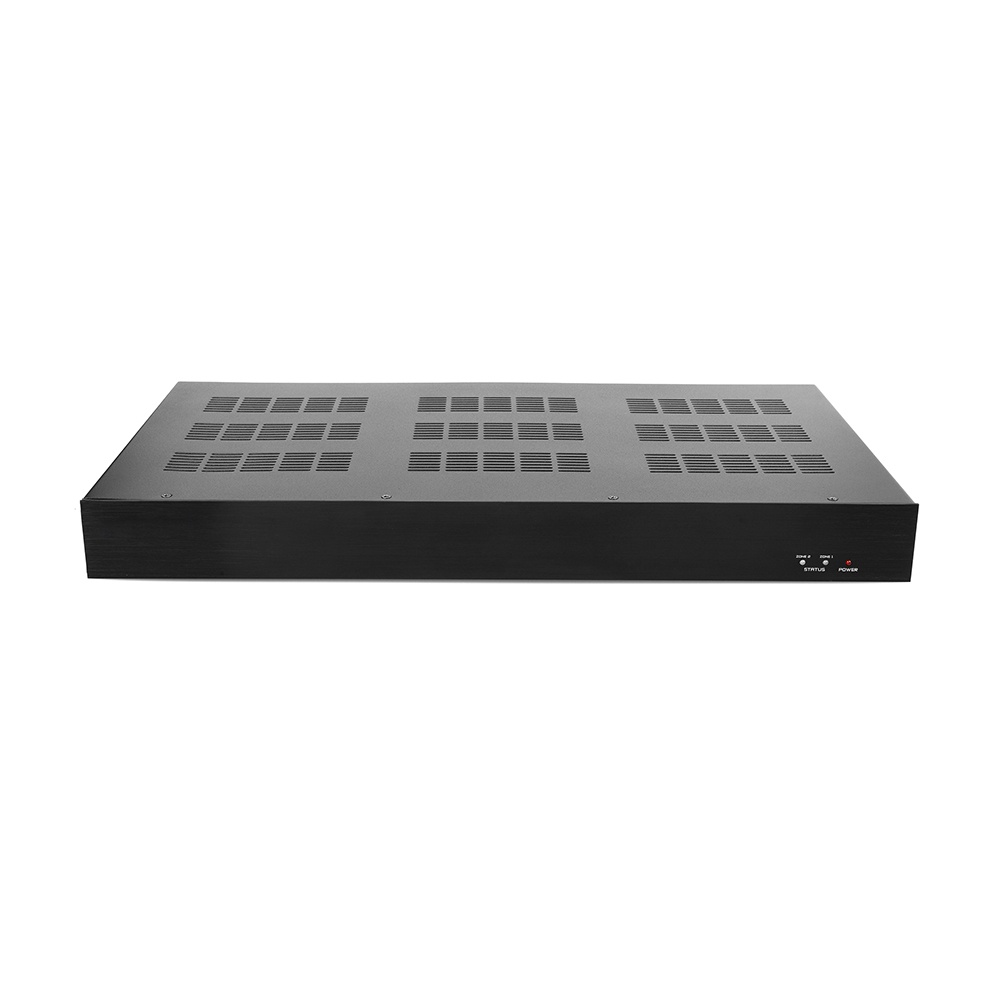

The Dante Amplifier is a cutting-edge 4-channel digital amplifier engineered with an integrated Dante Receiver Slot card, enabling seamless reception of digital audio signals from a Dante Network and their conversion into high-quality analogue audio for amplification. This innovative design allows users to effortlessly route audio signals from any source device connected to the same Dante Network via the intuitive Dante Controller, ensuring flexible and efficient signal management.
At its core, the Dante Amplifier features a robust Class D amplifier, delivering exceptional power efficiency and audio performance. It is equipped with advanced functionalities, including remote control capabilities, audio sensing for automatic signal detection, volume gain adjustment for precise audio tuning, and a buffered line output that supports further amplification of the same audio signal when required. This combination of features makes the Dante Amplifier an indispensable tool for professional audio systems, offering unparalleled versatility and reliability in networked audio environments.
D4150W 4CH Dante Amplifier Features:
Ø Class D amplifier: The cool running,low-profile,high efficiency design makes the perfect choice for even the most space-conscious system designs;
Ø Dante interface: Receiving digital signal from Dante network,and convert to analog audio signal to the amplifier;
Ø 50W per channel: A powerful output are available to provide ample power to even the largest of spaces;
Ø Loop Output: A buffered loop output is available for the audio signal,allowing additional amplifiers to be easily driven from the same signal;
Ø Trigger in/out:Amplifier can be activated by a 12V DC trigger signal,and can activate additional devices at the same time;
Ø Multiple Turn-on modes:
² Always On: Amplifier is always active and ready for use;
² Signal-sensing: Amplifier is in a standby mode when no audio signal is present and will turn on when an audio signal is detected;
² 12V Trigger: Using the 12V trigger allows precise turn on/off when the amplifier is needed,keeping the unit in a power saving standby mode when not in use.
Ø Multiple Output modes:
² ·8Ω-optimized mode for 8Ω stereo output;
² ·4Ω-optimized mode for 4Ω stereo output.
² ·Bridge-allows the use of the Amplifier as a powerful,8Ω mono amplifier.
Ø Removable speaker connectors:Allow for quick,secure installation and accommodate cables of up to 12 ga AWG;
Ø Thermal Protection:
² All amplifiers are designed with special circuitry to safeguard the Amplifier under a thermal overload condition.Thermal protection mode can only engage when the unit has been run at high volume for extended periods of time without adequate ventilation and/or when speaker impedance are below the minimum levels for the amplifier.If this fault occurs,turnoff the amplifier,and check that the speaker impedance rating is above the minimum rating.Also check for adequate ventilation around the amplifier and make adjustments if necessary.Once the unit has cooled to safe operating temperatures,the amplifier may be powered back on.
Ø Protection Circuitry:
² All amplifiers are designed with special circuitry to safeguard the amplifier under a short-circuit condition.A faulty speaker can also cause a short circuit condition.The front panel LED illuminates orange when the amplifier is in short circuit protection.If this fault condition occurs,turn off the amplifier and check speakers for short circuit conditions when appropriate.
