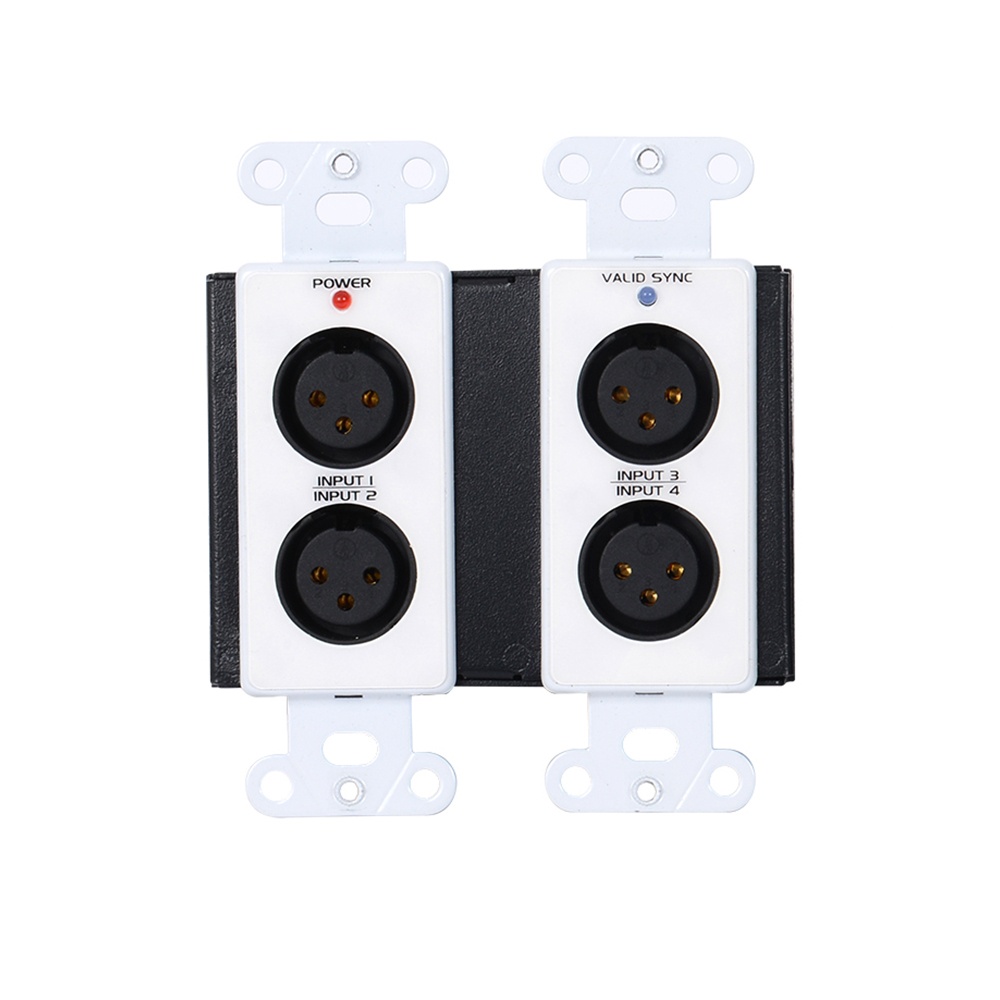

DWP42L is an excellent quality Dante interface box for converting two Dante channels to Analogue Audio outputs, and four Analogue Audio inputs to Dante network. DWP42L designed to fit with US style double-gang back box.
Simply use Cat5 cable to connect the RJ45 port to an Ethernet switch, and using “Dante controller” to route the low latency of signal to/from other devices which already connected on the same Dante network.
Dante Interface 4 x
Mic/Line Inputs, 2 x Line Outputs Features:
1. Four Mic/Line XLR Inputs on Front Panel
2. Converts Mic or Line Audio Signals to Dante Network
3. Mic or Line is Selectable for Each XLR Input
4. Switchable 48V Phantom Power for Each Mic XLR Input
5. Adjustable Mic/LIne Gain from -20 dB to +20dB for Each XLR input
6. Two Audio Signal Outputs from Dante Network on Rear Panel
7. Balanced or Unbalanced Signal Outputs
8. High Resolution 24 Bit for DAC and ADC
9. LEDs Indicate the Status for Power and Network Sync on Front Panel
10. Power over Ethernet (PoE) or 24VDC power supply
11. Provides High Quality of Preamplifier for Microphones
12. Excellent Audio quality with low noise
