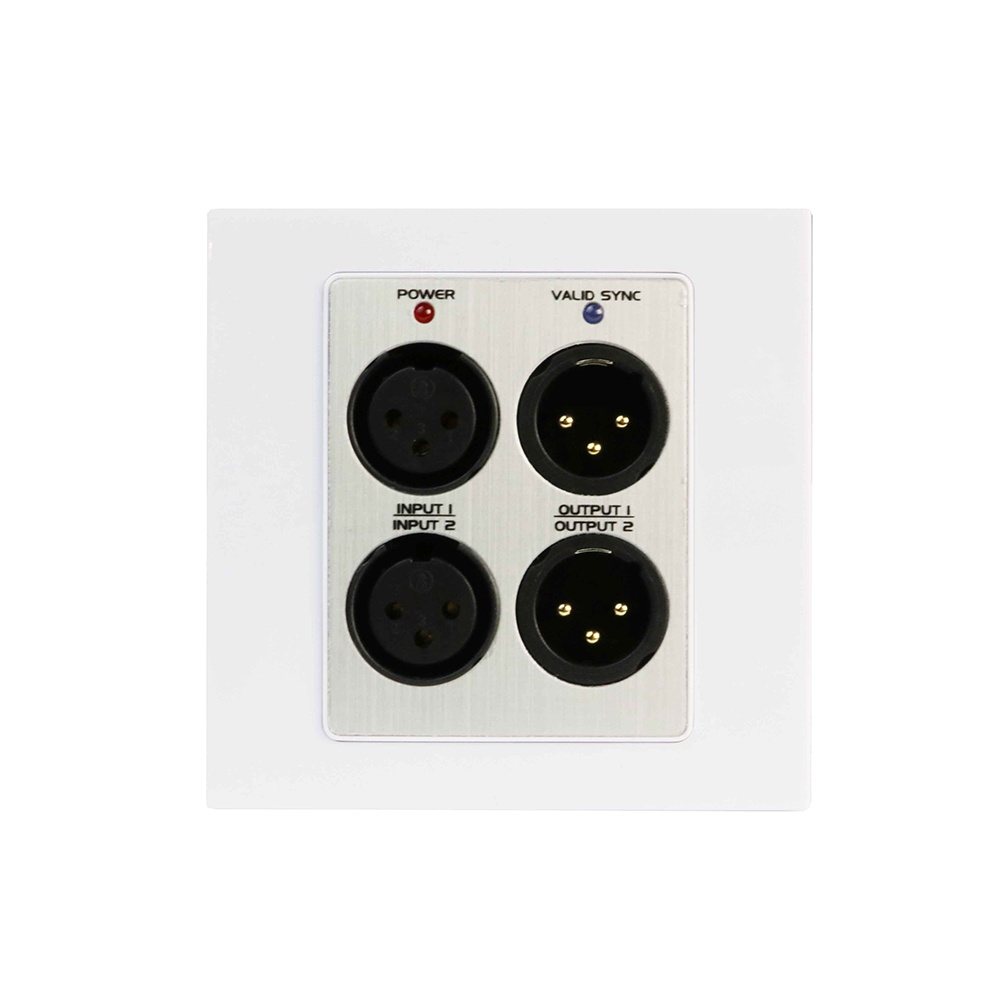

DWP22X is an excellent quality Dante interface box for converting two Dante channels to Analogue Audio outputs, and two Analogue Audio inputs to Dante network. DWP22X-UA designed to fit with US style double-gang back box. DWP22X-EU designed to fit with European mounting back box.
Simply use Cat5 cable to connect the RJ45 port to an Ethernet switch, and using “Dante controller” to route the low latency of signal to/from other devices which already connected on the same Dante network.
Dante Interface Mic/Line 2 Inputs x 2 Outputs Features
• Provides Dante Interface for Two Inputs / Outputs
• Two Standard XLR MIC or LINE Audio Channels Convert to Dante Network
• MIC/LINE selectable on Each Input
• Adjustable MIC/LIne Gain from -20 dB to +20dB for Each Input Channel
• Switchable 48V Phantom Power On Each Input for Condenser Microphone
• Each Audio Input Signal/Clip LED on Front Panel
• Two XLR Balanced Audio Output Line Level from Dante Network
• Two Output Channels on Rear Panel (corresponding to two XLR outputs)
• High Resolution 24 Bit Converts Analog to Digital and Digital to Analog
• LEDs Indicate the Status for Power and Network Sync on Front Panel
• Powered by External 24VDC Power Supply or PoE
• Normal Operation with PoE Enable Network Switch
