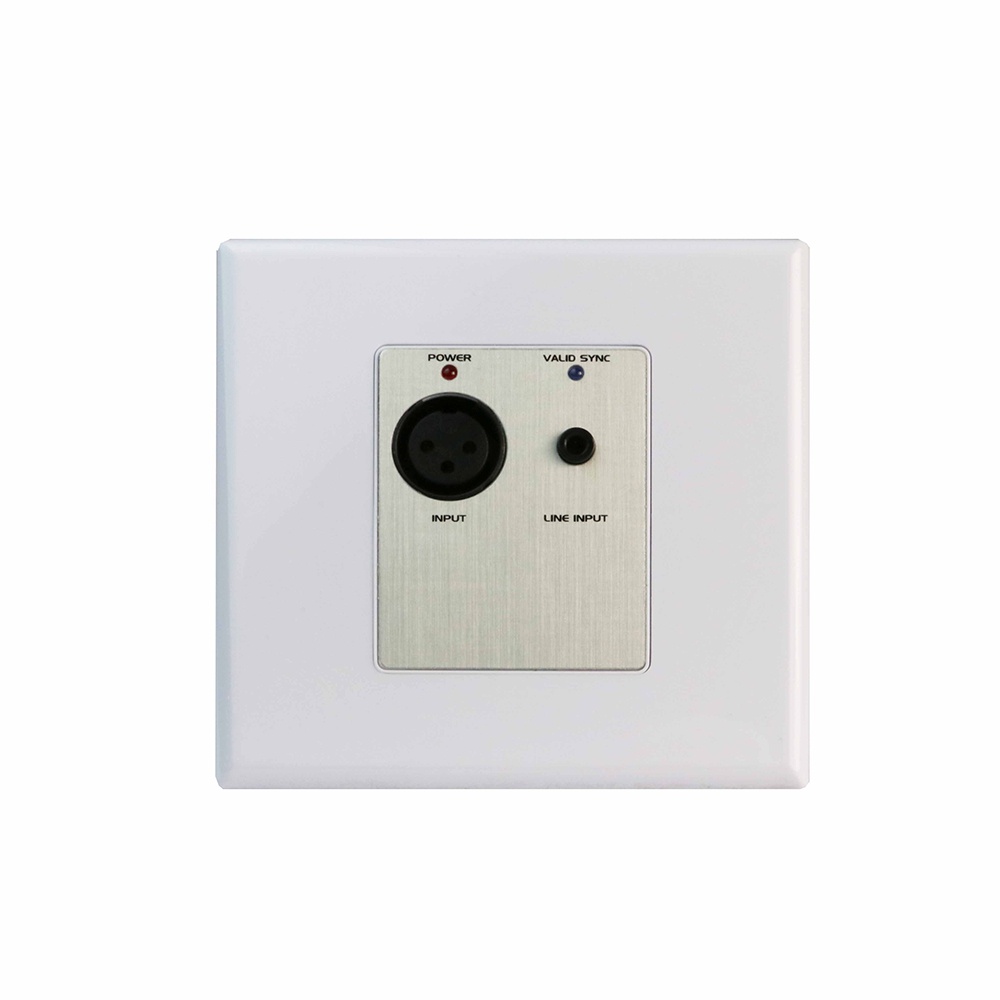

DWP22L is an excellent quality Dante interface box for converting two Dante channels to Analogue Audio outputs, and two Analogue Audio inputs to Dante network. DWP22L-US designed to fit with US style double-gang back box. DWP22L-EU designed to fit with European mounting back box.
Simply use Cat5 cable to connect the RJ45 port to an Ethernet switch, and using “Dante controller” to route the low latency of signal to/from other devices which already connected on the same Dante network.
Dante Interface Mic/Line 2 Inputs x 2 Outputs Features
• One MIC/Line XLR Input and One Mini-jack Input on Front Panel
• Mini-jack Input is summed to Mono signal
• Converts MIC or Line Audio Signals to Dante Network
• MIC/Line is Selectable for XLR Input
• Switchable 48V Phantom Power for MIC XLR Input
• Adjustable MIC/Line Gain from -20 dB to +20dB for Each Input Channel
• Two Audio Signal Outputs from Dante Network on Rear Panel
• Each Audio Input Signal/Clip LED on Side Panel
• High Resolution 24 Bit Converts Analog to Digital and Digital to Analog
• LEDs Indicate the Status for Power and Network Sync on Side Panel
• Power over Ethernet (PoE) or 24VDC power supply
• Provides High Quality of Preamplifier for Microphones
• Excellent Audio quality with low noise
