CSP / Dante Interface 4 Inputs x 4 Outputs
DB0404 is an excellent quality Dante interface box for converting three Dante channels to CSP products and fourth Dante Channel to Aux output. DB0404 also converts three pairs of CSP products to three Dante channels, and Aux input converts to fourth Dante Channel.
Simply use Cat5 cable to connect the RJ45 port to an Ethernet switch, and using “Dante controller” to route the low latency of signal to/from other devices which already connected on the same Dante network
CSP / Dante Interface 4 Inputs x 4 Outputs features
* DB0404 provides Dante Interface and works with CSP products.
* Accepts CSP products and Aux Input signal, Converts to Dante Four Input Channels.
* One RJ45 Input accepts the signals from Three Pairs of CSP products.
* Aux Input Signal converts to Dante Fourth Channel.
* Selectable of Balanced or Unbalanced Input signal for Aux Input.
* Switchable Mic/Line/48V Phantom Power for Aux Input.

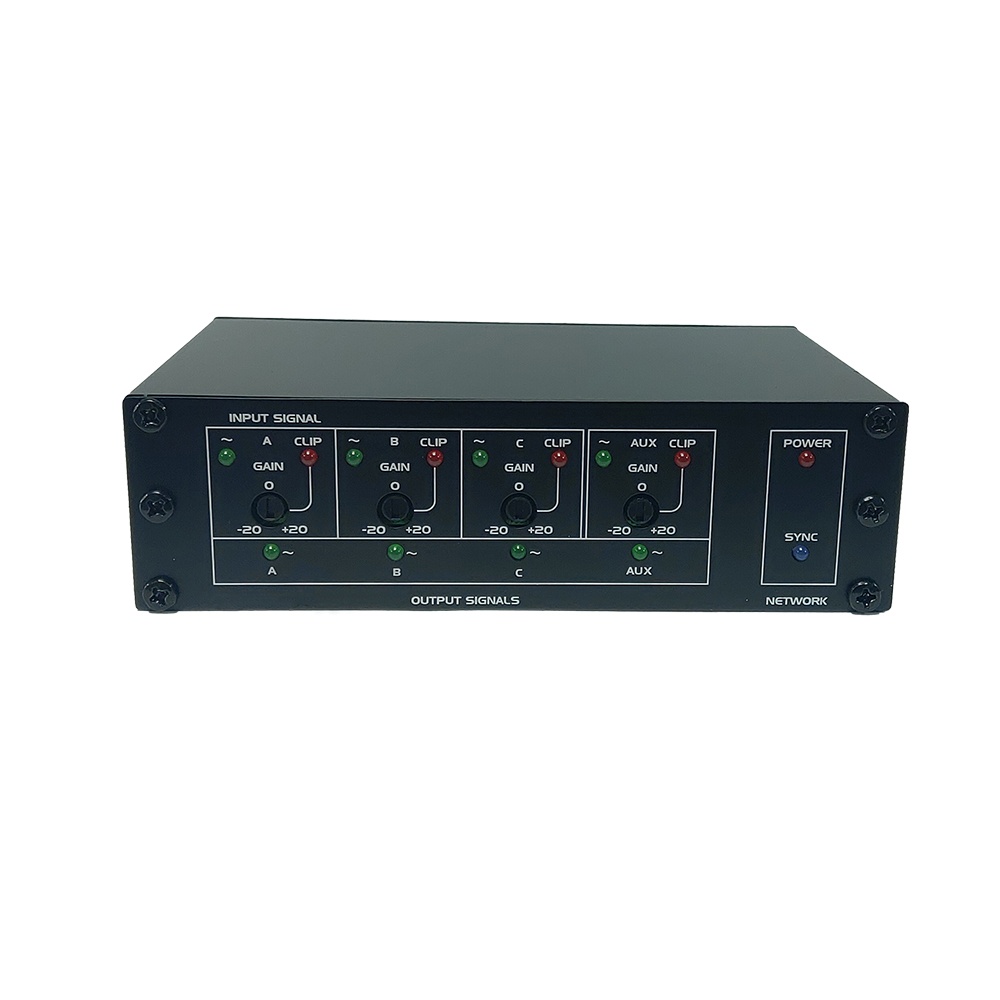

* Adjustable Gain from -20 dB to +20dB for Each Input Channel on Front Panel.
* Converts Dante Four Signal Channels to CSP products and Aux Output.
* Three Dante Audio Signals go to Three RJ45 Output, correspond to Pair A, B and C of CSP products.
* Fourth Dante Audio Signal goes to Aux Balanced Line Output.
* LED indicators for Signal Level and Clip of Each Input Channel on Front Panel.
* LED indicators for Signal Level of Each Output Channel on Front Panel.
* LED Indicators Show the Status of Power and Network.
* High Resolution 24 Bit Converts Analog to Digital and Digital to Analog
* External 24VDC Provides the Power to All Connected CSP Products through RJ45 Input/Output Jacks.
* Normal Operation with PoE (Power over Ethernet) Enable Network Switch.
