CSP / Dante Interface 2
Inputs x 2 Outputs
DB0202 is an excellent quality Dante
interface box for converting two Dante channels to CSP products also converts
two pairs signal of CSP products to two
Dante channels. Simply use Cat5 cable to connect the RJ45 port to an
Ethernet switch, and using “Dante controller” to route the low latency of signal to/from other devices which
already connected on the same Dante network.
CSP / Dante Interface 2 Inputs x 2 Outputs features
* DB0202 provides Dante Interface and works with CSP products.

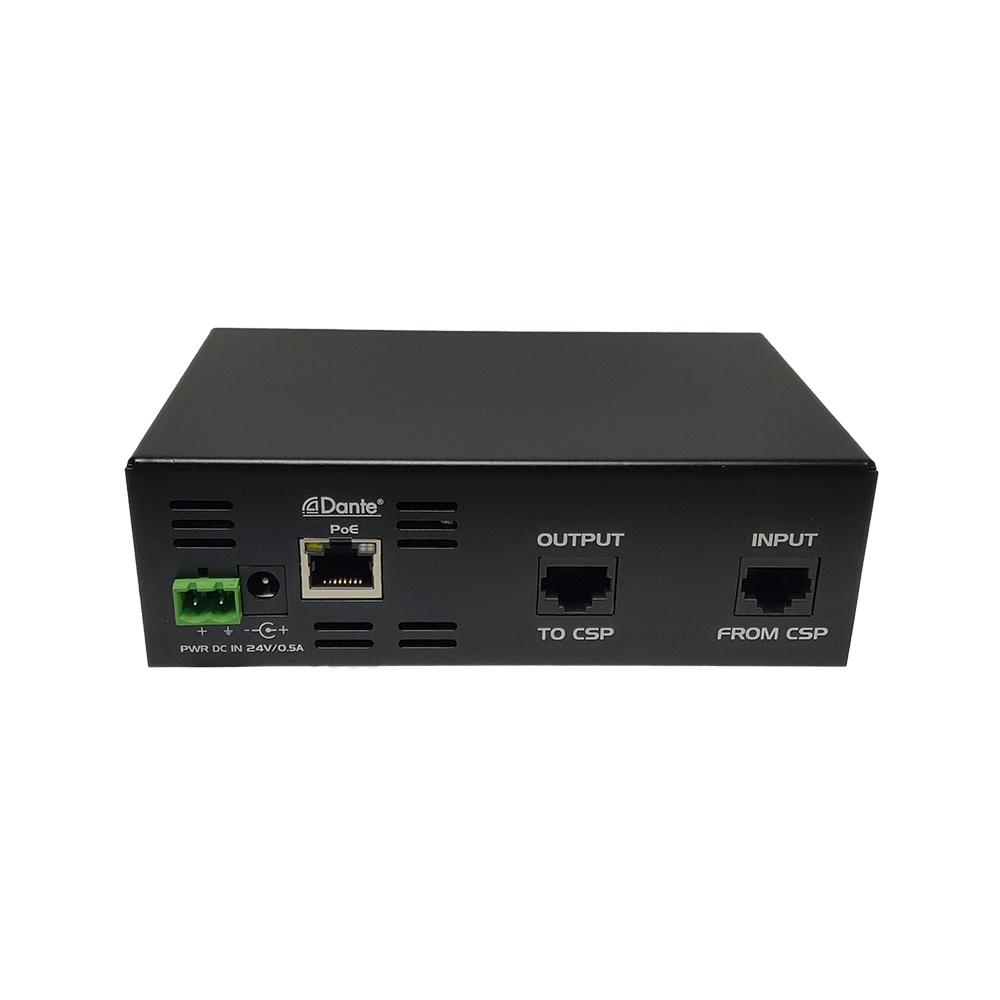

* One RJ45 Input Jack on Rear Panel for Connecting CSP Transceiver Products.
* One RJ45 Output Jack on Rear Panel for Connecting CSP Receiver Products.
* Converts CSP Pair B and Pair C Signals to 2 Channels Dante Network.
* Two Audio Signal Outputs from Dante Network.
* Converts 2 Channels Signals from Dante Network to RJ45 Pair B and Pair C.
* LED indicators for Signal Level and Clip of Each Input Channel on Front Panel.
* Adjustable Gain from -20 dB to +20dB for Each Input Channel on Front Panel.
* LED indicators for Signal Level of Each Output Channel on Front Panel.
* LED Indicators Show the Status of Power and Network.
* High Resolution 24 Bit Converts Analog to Digital and Digital to Analog
* External 24VDC Provides the Power to All Connected CSP Products through RJ45 Input/Output Jacks.
* Normal Operation with PoE (Power over Ethernet) Enable Network Switch.
