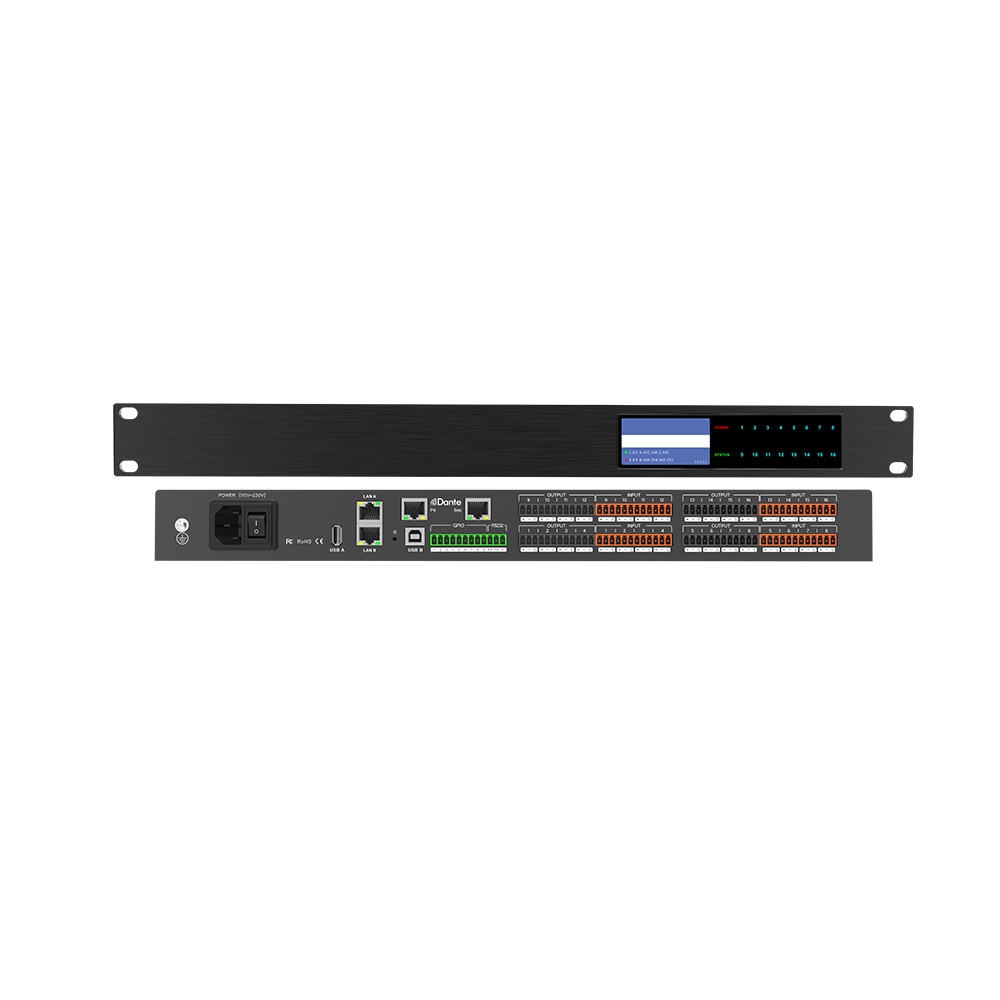

The digital audio processor is a freely designable audio processing and control system product. The front panel comes with a high-definition color screen, which can display the current working status of the device. It adopts advanced DSP processing technology. The system provides a variety of audio processing modules to choose from. The open software architecture can solve various practical problems in the application scenario. . 128 network audio channels, providing high bandwidth, low latency, high compatibility and low cost solutions for network audio transmission
Main Features:
- Analog Channel:16 in 16out
- Dante Channel:64 in 64out
- Advanced and reliable hardware: Analog Devices High performance DSP Sharc21569 + NXP I.ML ARM processor
- Support 64*64 Dante network audio channels (AES67 compatible)
- Up to 32 analog audio I/O channels, USB A interface, USB B interface, RS232 interface and GPIO interface
- 16 mic/line level analog audio input channels
- 16 Route level analog audio output channel
- Multiple assignable, routable AEC processor modules
- Two gigabit Ethernet ports for Dante audio connectivity or network backup
- Two independent 100 gigabit Ethernet ports for controlling connections or network backup
- Up to 8*8 USB digital audio recording broadcast channels
- Eight GPIO interfaces for free input and output configuration
- Built-in dedicated power module and 12V(500mA) DC external power supply
- Open architecture, arbitrarily set signal processing and flow, arbitrarily design user control interface
- Support USB sound card
- Built in AEC,ANC,AFS
- Support WIFI connection
