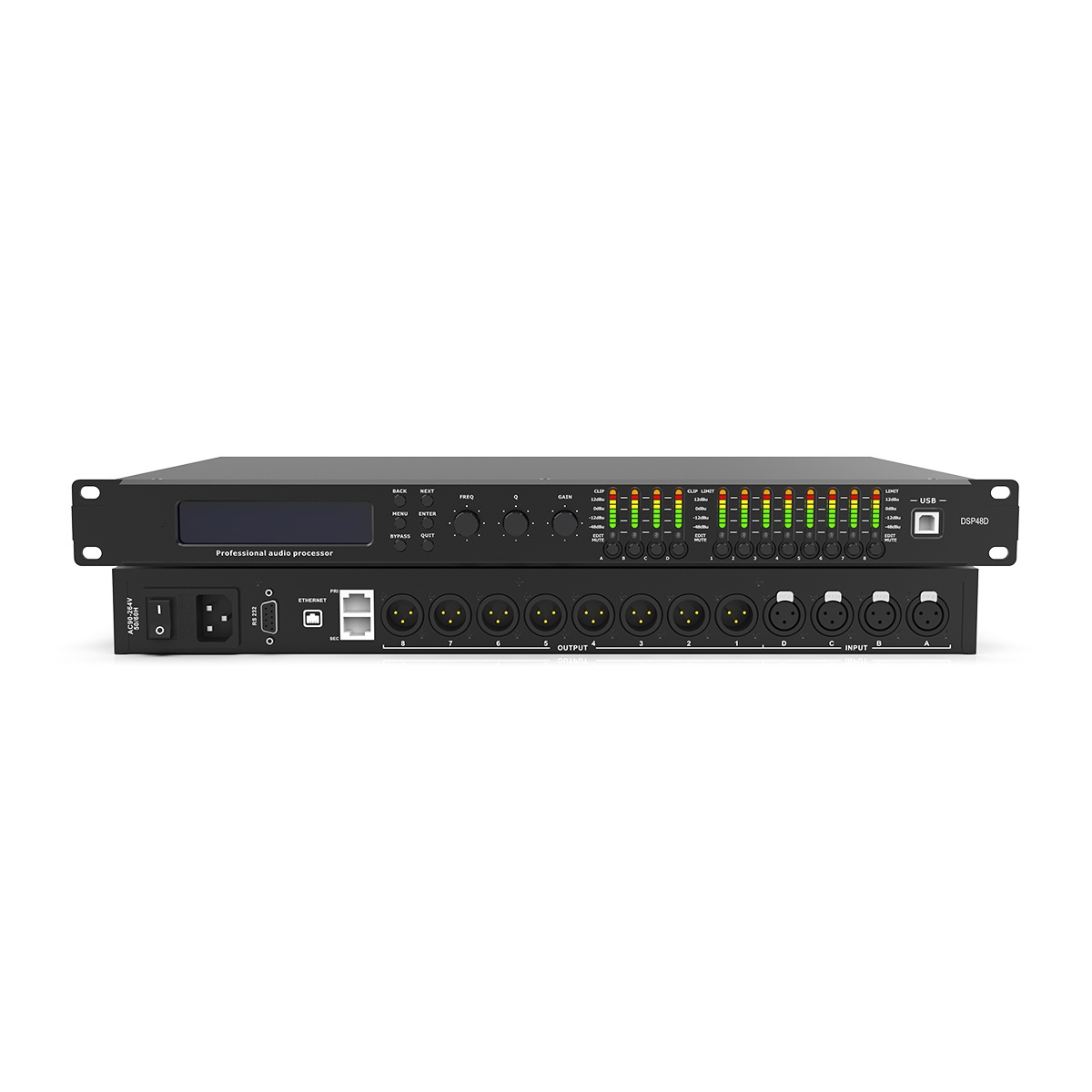

4 balanced analog inputs, 8 balanced analog outputs
4 inputs support AES signal switching
High-performance DSP processing, 96k 24bit sampling rate, standard pink/white noise/sine wave signal generator, RMS noise gate, delay (step accuracy 0.01ms), compressor, limiter, per channel level gain Accuracy 0.1dB
Input 15-band PEQ and output 10-band
Supports high and low pass (Butterworth\Bessel\ Linkwitz-Riley 6 to 48dB/Oct slope adjustable), PEQ divider adjustable high and low shelf (LSLV, HSLV), supports Allpass\High pass\Low pass\Band pass\Band stop \LPE\HPE various filters
Standard dynamic equalization, 3-band DEQ adjustable for each input channel
Standard configuration is 512Taps 48K FIR phase correction for each input, and standard FIR automatic correction function
Each output has 512Taps 48K FIR phase correction as standard, and FIR automatic correction function as standard
USB driver-free automatic connection software, supports TCP/IP centralized management and debugging of multiple machines, and is configured with RS232 central control interface
Windows installation-free software Mconsole control, can centrally manage multiple devices, optional Android APP wireless network control
Supports 28 device parameter archives, sets aliases according to project
needs, supports archive locking, and hides setting parameters to ensure project
stability
Equipped with LED channel indicators, high-resolution and dynamic audio
performance, suitable for high-end sound reinforcement occasions such as stages
and bars.
